APD SERIES

APD SERIES High Power. High Efficiency.
Serious Driving Force.

High-power 2-channel and 4-channel professional amplifiers with PFC, 2Ω stability, universal AC operation and compact 2U construction.

EXPLORE APD SERIES →DOWNLOAD USER MANUAL ⇩

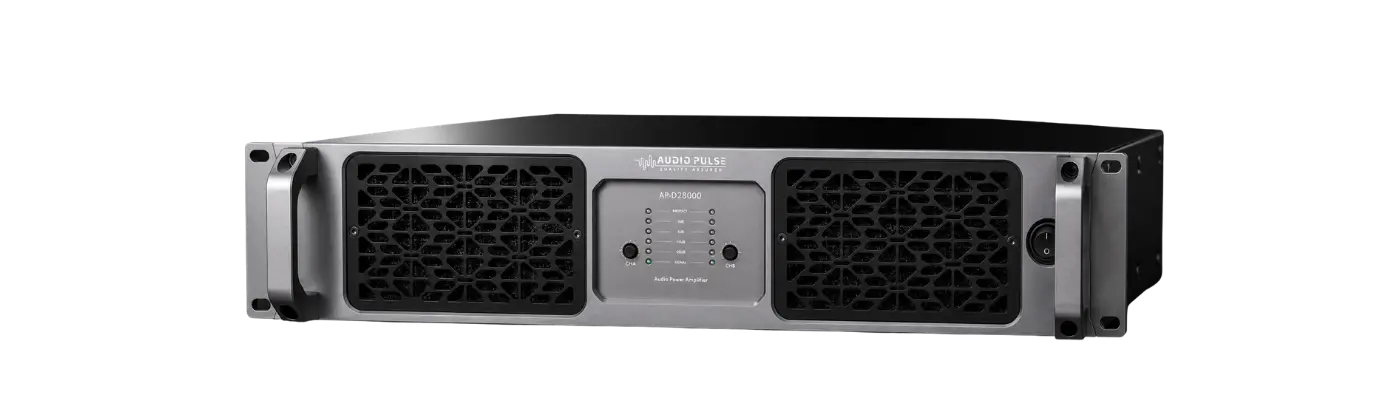

Audio Pulse APD Series professional power amplifier
High Power

2Ω-stable RMS output with high load capacity for demanding sound systems.

PFC Power Supply

AC 100–240V (±10%), 50/60Hz compatible power-factor-corrected supply.

High Performance

>110dB SNR, >1000 damping factor and 50V/μs slew rate.

Comprehensive Protection

Clip, over-voltage, DC, VHP, short-circuit and overheat protection.

APD SERIES MODELS

Audio Pulse APD-16000 amplifier

APD-16000

  • 2 × 4000W @ 8Ω
  • 2 × 7000W @ 4Ω
  • 2 × 7000W @ 2Ω
→
Audio Pulse APD-28000 amplifier

APD-28000

  • 2 × 8200W @ 8Ω
  • 2 × 14000W @ 4Ω
  • 2 × 12000W @ 2Ω
→
Audio Pulse APD4-10000 amplifier

APD4-10000

  • 4 × 1400W @ 8Ω
  • 4 × 2400W @ 4Ω
  • 4 × 2400W @ 2Ω
→
Audio Pulse APD4-14000 amplifier

APD4-14000

  • 4 × 2380W @ 8Ω
  • 4 × 3550W @ 4Ω
  • 4 × 4600W @ 2Ω
→

OVERVIEW

The APD Series comprises APD-16000 and APD-28000 2-channel models plus APD4-10000 and APD4-14000 4-channel models. The supplied manual specifies PFC with AC 100–240V (±10%), 50/60Hz operation, 2Ω-stable RMS output, full-bridge power-supply design, third-generation SiC semiconductor technology, high power density, compact 2U construction and front-to-rear temperature-controlled cooling. The series operates in stereo or mono mode and does not provide bridge mode.

Audio Pulse APD Series rear panel with Neutrik XLR inputs, Speakon outputs and cooling fans
PFC SupplyAC 100–240V ±10%, 50/60Hz
2Ω StableHigh load-capacity RMS output
>110dB SNR20Hz–20kHz A-weighted at 8Ω
>1000 DampingStrong loudspeaker control
Neutrik I/OXLR inputs and Speakon outputs
Compact 2UHigh efficiency with dual-fan cooling

TECHNICAL SPECIFICATIONS

SpecificationAPD-16000APD-28000APD4-10000APD4-14000
8Ω stereo2 × 4000W2 × 8200W4 × 1400W4 × 2380W
4Ω stereo2 × 7000W2 × 14000W4 × 2400W4 × 3550W
2Ω stereo2 × 7000W2 × 12000W4 × 2400W4 × 4600W
Net weight15.2 kg16.7 kg11.7 kg12.0 kg
Gross weight18.3 kg19.8 kg14.4 kg14.7 kg
Product size483 × 500 × 88 mm (2U)483 × 406 × 88 mm (2U)
Frequency response20Hz–20kHz, +0 / −1dB
THD<0.5%, 20Hz–20kHz
IMD<0.05%
Gain32dB / 35dB / 38dB / 41dB
S/N ratio>110dB (20Hz–20kHz, A-weighted @ 8Ω)
Crosstalk (1kHz)−75dB
Damping factor>1000
Slew rate50V/μs
Input impedance10kΩ balanced
Ventilation2 temperature-controlled fans; front-to-rear airflow
InputNeutrik male & female XLRNeutrik female XLR
OutputNeutrik Speakon
LED displaySIGNAL, −20dB, −10dB, −5dB, −3dB, PRO, CLIP
Operational modeStereo / Mono — no bridge mode
AC supplyAC 100–240V (±10%), 50/60Hz

Specifications transcribed from the supplied APD Series operational manual. The manual explicitly states that bridge mode is not supported.

APPLICATIONS

Live Sound / Concerts
Touring & Events
Fixed Installations
Theatres & Auditoriums
Houses of Worship
Clubs & Venues

DOWNLOADS

APD Series User ManualAPD-16000 / APD-28000 / APD4-10000 / APD4-14000⇩
DatasheetTechnical parameters are included in the user manual.
BrochureNot supplied yet
