CH SERIES

CH SERIES Power. Performance.
Stage After Stage.

Professional two-channel power amplifiers engineered for demanding live sound, touring and fixed-installation systems.

EXPLORE CH SERIES →DOWNLOAD USER MANUAL ⇩

Audio Pulse CH10000 professional power amplifier

High Power

Up to 5600W × 2 at 2Ω across the top CH models.

High Performance

<0.05% THD+N and >1000 damping factor.

Built To Last

Professional 3U rack construction for demanding systems.

Flexible Operation

Stereo, parallel and bridge operating modes.

CH SERIES MODELS

CH6000

2 × 1500W @ 8Ω
2 × 2400W @ 4Ω
2 × 3150W @ 2Ω

→

CH8000

2 × 2000W @ 8Ω
2 × 3200W @ 4Ω
2 × 4100W @ 2Ω

→

CH10000

2 × 2500W @ 8Ω
2 × 4000W @ 4Ω
2 × 5600W @ 2Ω

→

CH14000

2 × 2800W @ 8Ω
2 × 4500W @ 4Ω
2 × 5600W @ 2Ω

→

OVERVIEW

The CH Series comprises CH6000, CH8000, CH10000 and CH14000 professional power amplifiers. The supplied manual specifies Class TD output circuitry, fan cooling, XLR inputs, NL4 MPXX 50A and four binding-post outputs, selectable 0.775V / 1.4V / 32dB input sensitivity, and stereo, parallel and bridge operating modes. The series is designed as 3-rack-space professional amplification for live and installed sound systems.

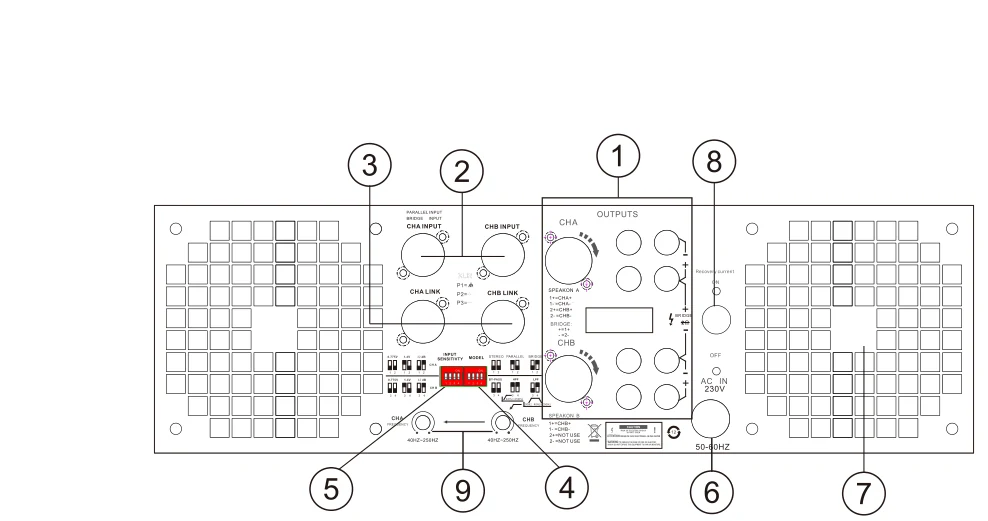

Audio Pulse CH Series rear panel showing XLR inputs, output connectors, cooling fans and operating controls

Class TDProfessional output circuitry

20Hz–20kHz±0.5dB frequency response

Protection IndicatorsPower / signal / clip / protect

>1000 DampingHigh loudspeaker control

XLR InputsBalanced professional connectivity

Fan CoolingActive thermal management

TECHNICAL SPECIFICATIONS

Specification	CH6000	CH8000	CH10000	CH14000
8Ω stereo	1500W × 2	2000W × 2	2500W × 2	2800W × 2
4Ω stereo	2400W × 2	3200W × 2	4000W × 2	4500W × 2
2Ω stereo	3150W × 2	4100W × 2	5600W × 2	5600W × 2
8Ω bridge	4800W**	6400W*	8000W*	9000W*
4Ω bridge	6300W**	8000W**	9000W**	10000W**
Net / gross weight	39.0 / 45.5 kg	40.3 / 47.0 kg	45.5 / 52.0 kg	46.5 / 53.0 kg
Frequency response	20Hz–20kHz (±0.5dB)
THD+N	<0.05%
S/N ratio	>100dB
Damping factor	>1000
Crosstalk	>70dB
Slew rate	>13V/μs
Input sensitivity	0.775V / 1.4V / 32dB
Input impedance	20kΩ balanced / 10kΩ unbalanced
Voltage gain (8Ω)	32dB
Output circuitry	Class TD
Cooling	Fan
Input	XLR
Output	NL4 MPXX 50A / Binding post × 4
Dimensions	483 × 500 × 133 mm; with handle 483 × 540 × 133 mm
Packing dimensions	640 × 700 × 240 mm
Power	AC230V / 50Hz, ±10%

Manual test notes: * power tested under EIA standard. ** power tested under 40ms burst, 1kHz sine wave and 1% THD. Specifications are subject to change as stated by the manufacturer.

APPLICATIONS

Live Sound / Concerts

Touring & Events

Fixed Installations

Theatres & Auditoriums

Houses of Worship

Clubs & Venues

DOWNLOADS

CH Series User ManualCH6000 / CH8000 / CH10000 / CH14000⇩

DatasheetTechnical parameters are included in the user manual.

BrochureNot supplied yet
